Macroblock

In ISE 2017, the main theme of Macroblock is Hawkeye 200 ^*1. Hawkeye 200 uses MBI5353 which has four advantages:

Advantage 1: superior image quality

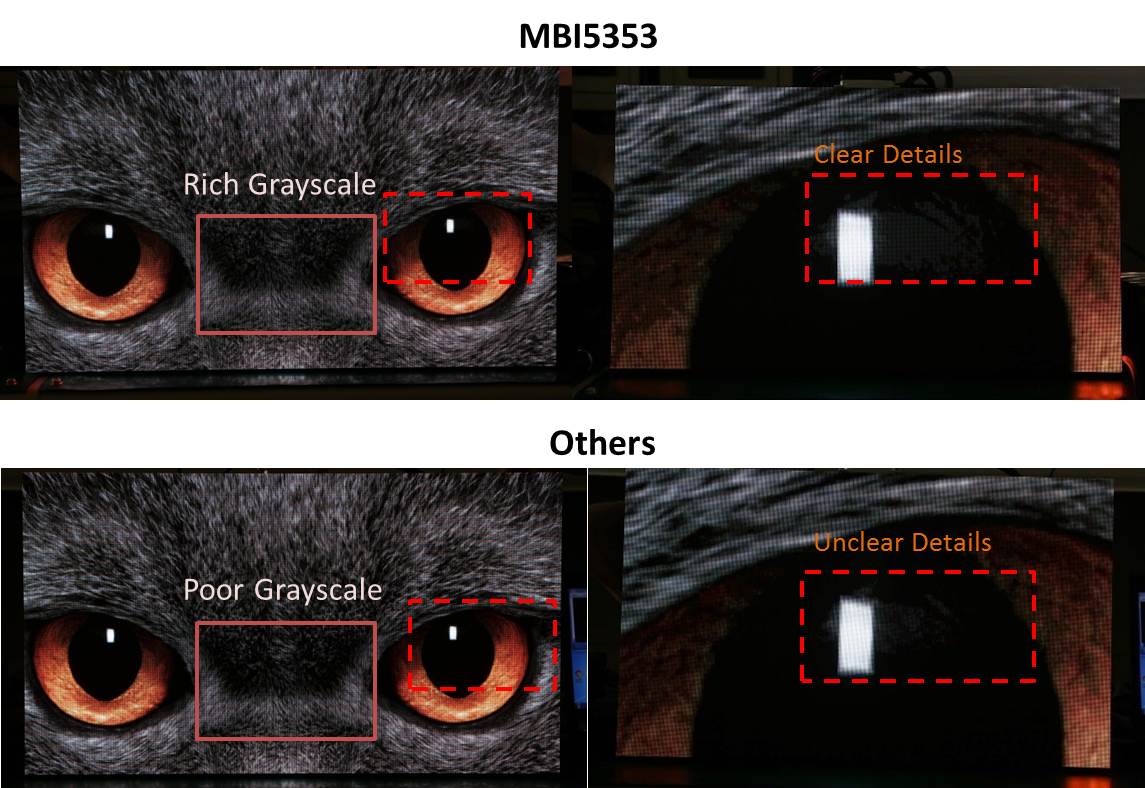

(Figure 1. Image quality comparison)
The display with MBI5353 can not only solve seven challenges^*2, but also keep high contrast without losing detail at low grayscale levels.

Advantage 2: intelligent power saving
(Figure 2. Demonstration of power saving effect)
MBI5353 has intelligent power saving function that is designed for 24/7 operation applications, such as control room and retail. When there is no display of a block controlled by an MBI5353, this MBI5353 will automatically enter power saving mode. Based on experimental data, if the two displays are showing black, the one which enters intelligent power saving mode could reduce power consumption by 40%.

Or in the application like a control room, as the image (Tram map of Amsterdam) shown below, the display which uses intelligent power saving can decrease power consumption by around 20%.

Figure 2. Demonstration of power saving effect
(Display Spec.: P1.25/27s/480*270 pixels)

Advantage 3: adjust brightness without losing grayscale and keeping white balance
(Figure 3.  20% Brightness, 1/200 shutter speed)
As for the rental application, displays need to adjust brightness according to the ambient light. Compared to the traditional way of sacrificing grayscale to adjust brightness, the brightness adjustment module^*3 of MBI5353 can maintain grayscale and keep white balance. The user interface is quite friendly and users just need to drag the bar (circled in the red ) to select the proper brightness level.

The left one uses grayscale data to adjust brightness and appears grayscale loss phenomenon

Advantage 4: simple routing on PCB layouts

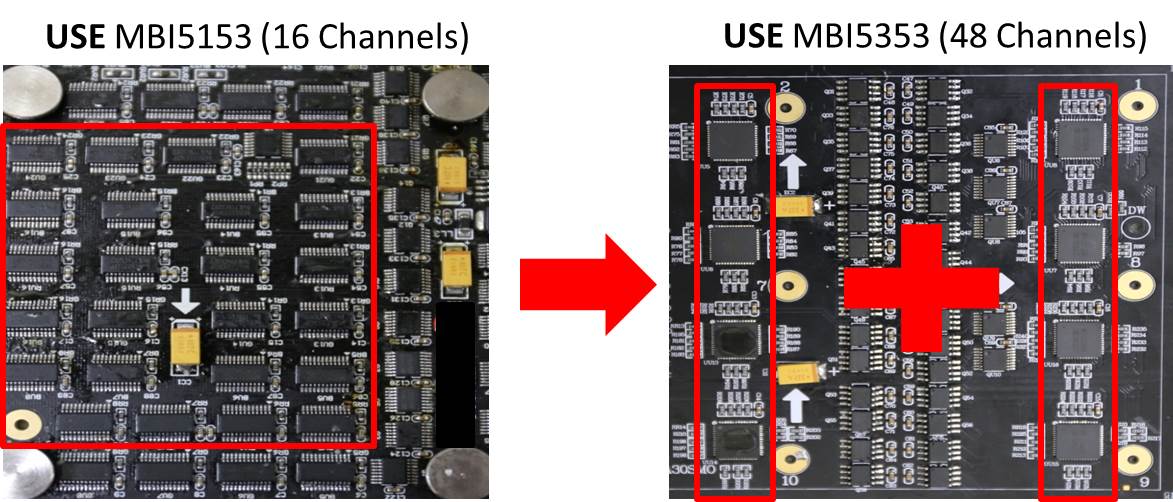

(Figure 4. PCB layout comparison)
One MBI5353 can drive the same pixels as three MBI5153, and it helps to facilitate PCB layout and decrease total cost.

If you need more product information about Hawkeye 200 or MBI5353, please email to marketing@mblock.com.tw.

Note 1: Please refer to technical article: Establishing High Definition Product Characteristic and User Experience with the Hawkeye Solution Platform
Note 2: Please refer to technical article: Fine Pitch LED Display Possible Problems and Driver IC Solutions
Note 3: Please refer to technical article: Analyzing Methods for Adjusting LED Display Brightness
