Hysteretic Pulse Frequency Modulation

Boosting Performance With Better Conversion Efficiency Under Low Loads

Hysteretic Pulse Frequency Modulation (Hysteretic PFM)—which does not require circuit compensation—not only offers an excellent cost competitiveness and a fast dynamic response, it also provides an outstanding conversion efficiency under low loads that can significantly boost the performance of LED lighting systems.
● Operating control hysteresis range ±15%

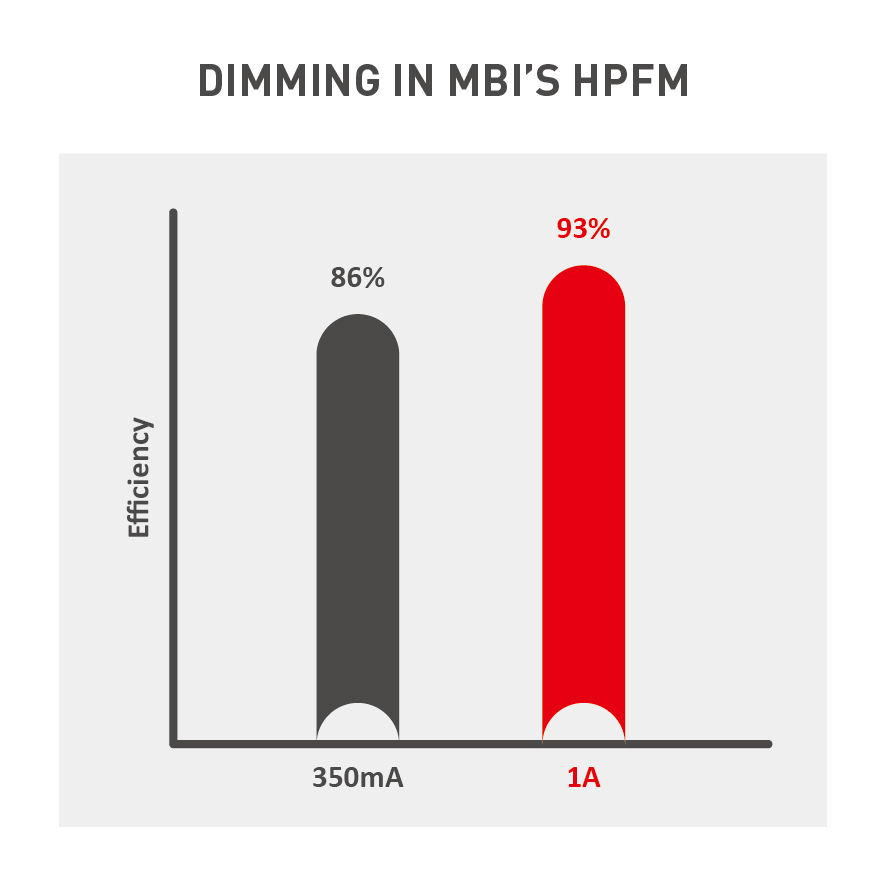

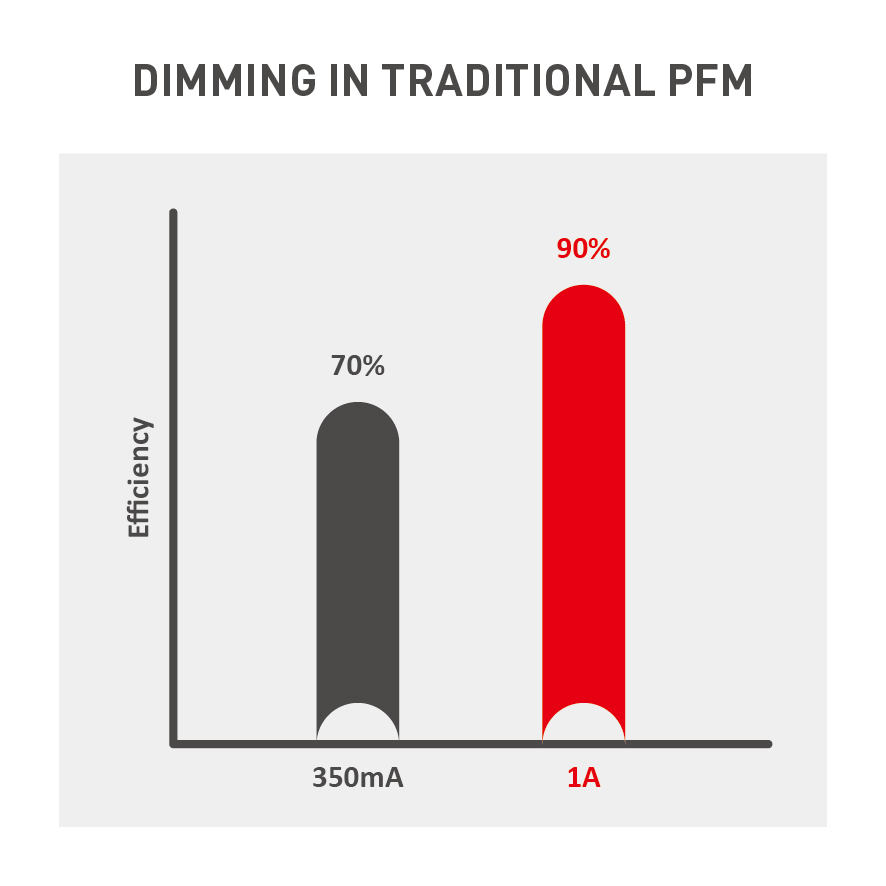

● Hysteretic pulse frequency modulation can increase efficiency under low loads from 70% to over 86%.
● Adjustable output switching frequency

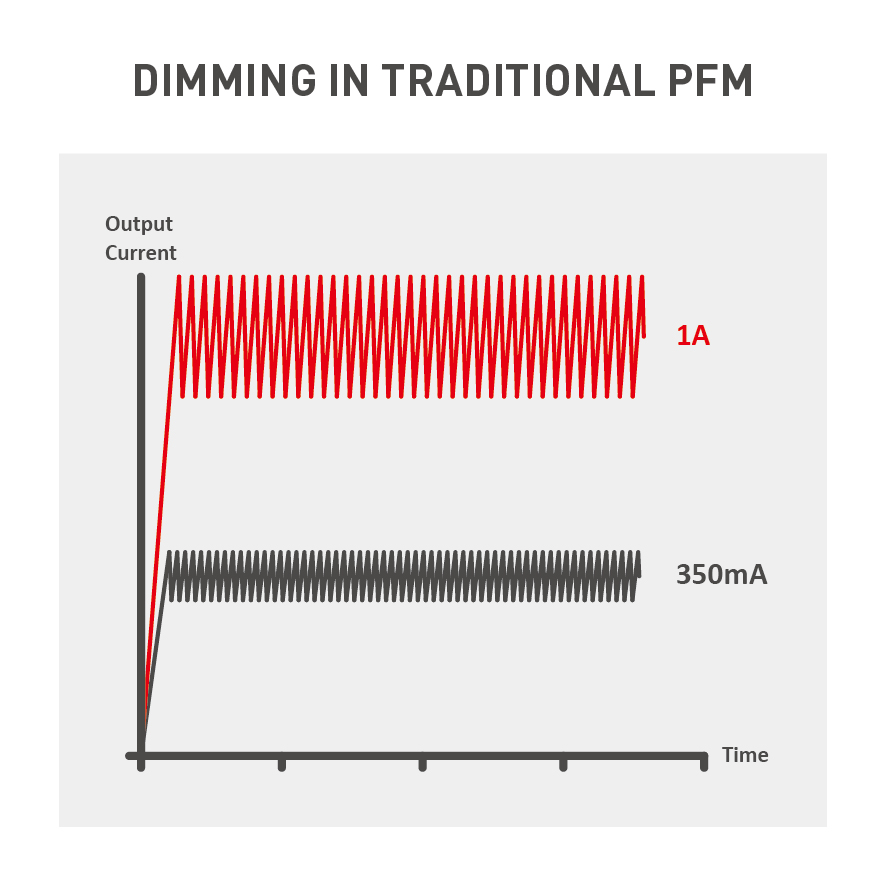

- The greater the current load, the higher the switching frequency (to a maximum of 1.0MHz)
- The switching frequency is high under a 1A high load, and is low under a 350mA low load.
- Low load: <200 mA or only one LED in use
● Can be used for streetlights or decorative lighting (MR16)
